AvMike

How does a ANR Headphone turn into a perfect pilot headset ?

Very easily !  our AvMike-1 turns any BOSE©  QC-25/ -35 I+II / -45/ -SE/ -SC /QC / 700 / Ultra oder Sony WH1000 XM 1 ... 5 headphone into a  ANR pilot-headset - combining perfect and super-comfortable fit with outstanding radio audibility and state of the art noise- reduction at a unbeatable price. The headphones preserve their basic functionality - the transformation from headphones into a headset or vice-versa can be done within seconds.

All details

  • Noise-Cancel Mic-unit for use in airplanes
  • Carbon - GA Standard amp. Electret for use in airplanes
  • enhanced EMC protection

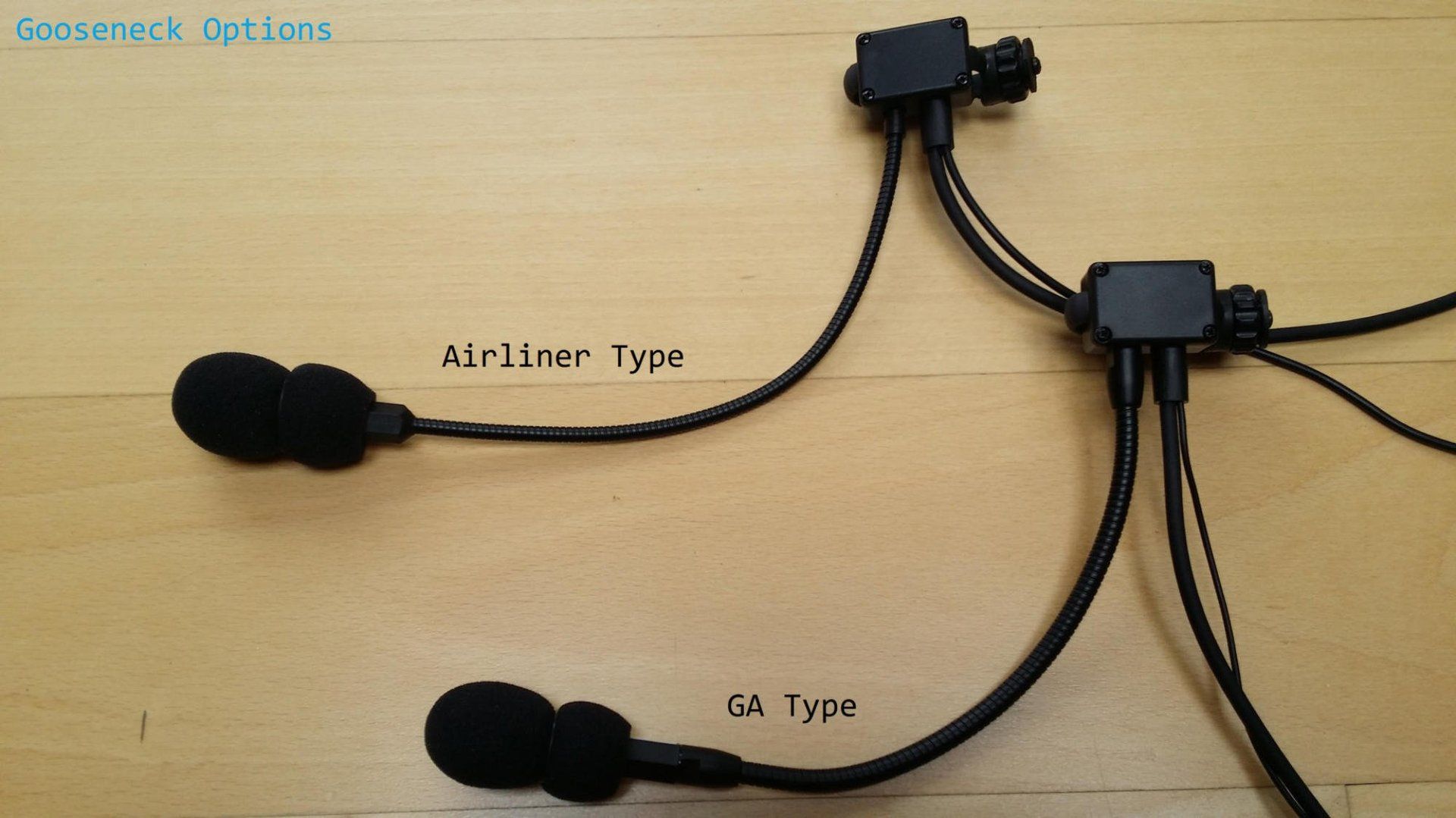

  • Stable and stiff microphone gooseneck for GA  - weight reduced and less stiff light version for airliner op available
  • Goosenecks specified for extrem amount of max. bending cycles and is a medical device standards hardware
  • GA gooseneck version doesnt move or alter position unintended while flying thru heavy weather or extreme maneuver in small airplanes
  • All wires shielded, cables are medical-device standards hardware
  • Volume-Control with retractable volume knob avoiding unintended adjust
  • Plugs : Dual PJ  GA-Standard Plugs / MIL grade,  optional :   Lemo Redel,  XLR-5 Neutrik
  • Rugged and superstable clamp mounting - can be installed within seconds - no tools needed, headphones do not need any mechanical alterations and will not be harmed, clamp mechanism exchangeable
  • Safe operation in many areas of aviation  ( private pilot, passengers -  Prop, Turbo, Jet ) - designed for daily use
  • QC audio-socket is not mechanically stressed because our clamp mic-mounting is indepedent from the socket itself
  • German engineering, manufactured in germany
  • Only high-quality parts used - developed from pilots - for - pilots
  • Headset incredible comfortable - even after many hours of flighttime
  • customer adjustable Mic-Outputlevel, preadjusted to TSO min-level


Practical testing on

airplane types among others :  Diamond® DA20, Aquilla® A210, Cessna®-172, CitationX®, B737, B747-200/400/800, A320

Standards

CE-Declaration AvMike-1
WEEE RegNr. AvMike-1  94899094


Delivery includes

Mic-Kit consisting of microphone, connectors, boom , cables and all mechanical parts needed to build a headset
windscreen  and operators manual in english included

*** headphones not included ***


Operation notes

Headphones are not powered via onboard power-sources  - QC battery / accu. operation only - AvMike1 itself needs no power

Check prior to every departure :  Battery QC : Ok  /  all plugs attached firmly : Ok /  AvMike-1 mounted safely :  Ok

All supported headphones are operating safely even after batt / accu down or switched of ANR  -  safe radio comm possible also in this case

In the case of inflight suddenly arising loud and persisting EMC noise ( induced possibly by faulty ingnition wiring, high RF SWR, electronic/electric onboard failures ) presented in your headphones please disengage the QCs ANR  -  this probably cuts the noise down to a min. level  -  until the EMC noise source has been found and stopped.


Trademarks

BOSE®, QC®, Acousticom®, Diamond®, Cessna®, Aquilla®, Citation® are registered trademarks and are used for description purposes only.
