HamRadio

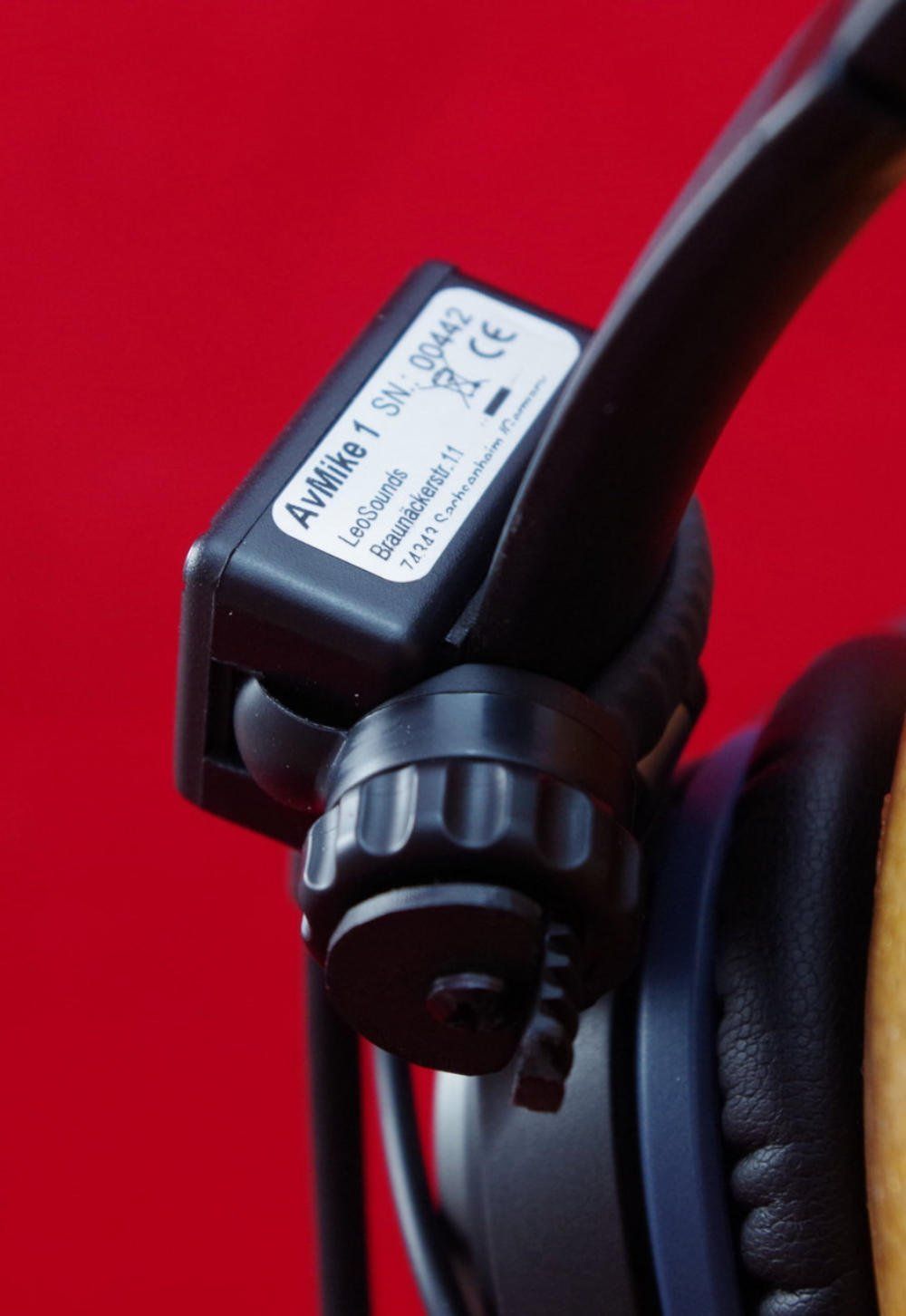

AvMike version for HamRadio

Special version with integrated mic freq.-response mode switch

The AR version of AvMike was created with the help of intensive consulting and prototype practice performed by a very experienced amateur radio guy. The amateur radio party also need headphones that are comfortable for a long time to sit, provide a very good speech audibility and accurate representation. The microphones have a close relationship to the requirements of aviation - best speech audibility and very good background noise reduction.

Additional or changed specifications in comparison to our aviation AvMike

  • Microphone with studio-quality electret-capsule
    ( S/N 72 dB , Noise-Cancel type / noise att. typ. > 25 dB  at 50cm dist. )

  • Mic-Amp including Level-Adjustment and HamRadio-modeswitch changing mic-freq.-response pattern, phantomvoltage
    min 3,3 ... max 24 VDC

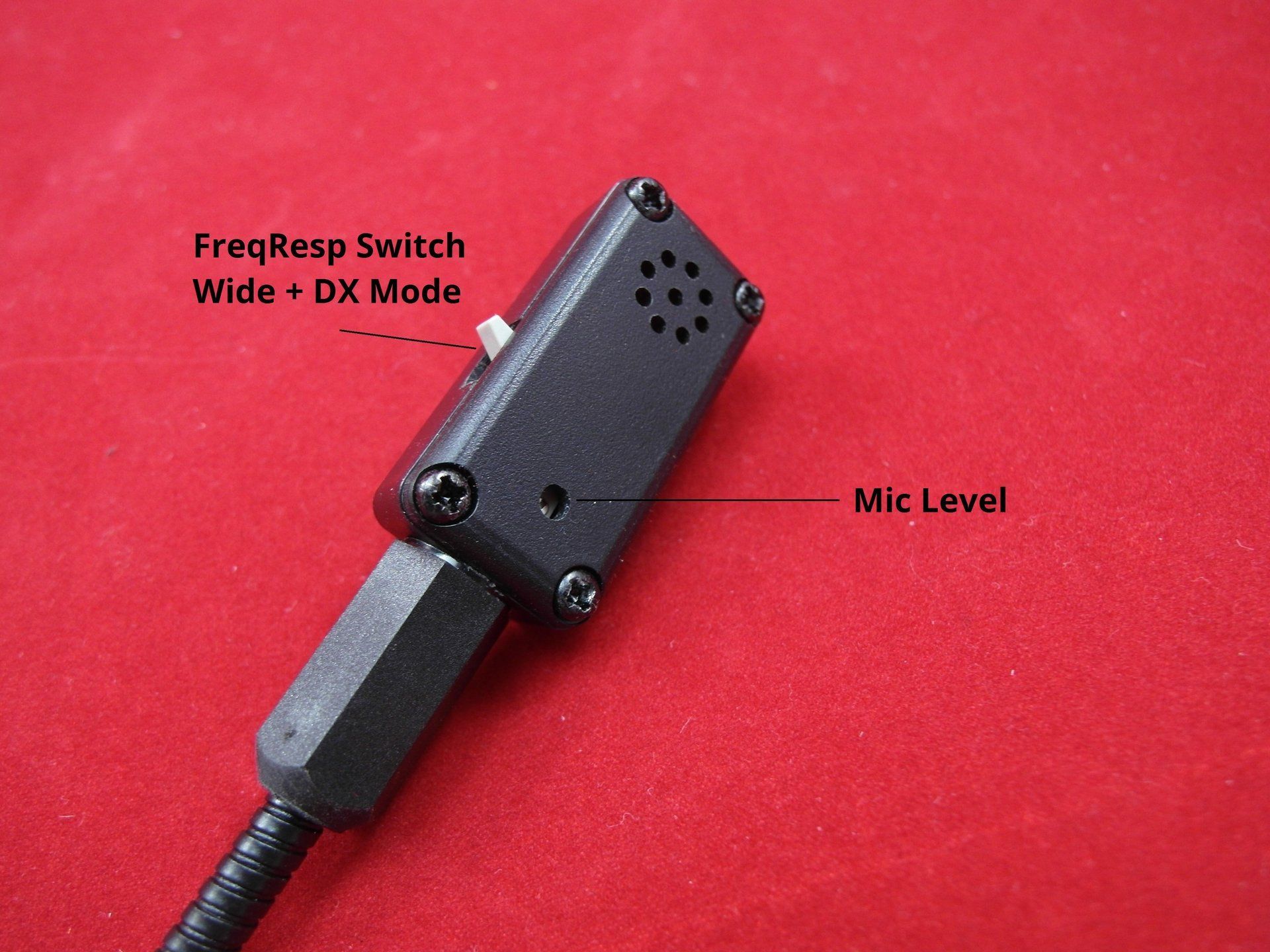

  • Two Freq.-Response ranges selectable by toggle switch at the mic-frontend :
    1.) DX-operation specialized to support extrem speech audibility - has a mids oriented and very narrow freq.-resp.
    2.) more common HamRadio use with a wider and more balanced freq.-response range.

  • Stereo-plug 1/4"  and Standard 8-Pin round-plug   -   ICOM, Yaesu or Kenwood pinouts available.

  • Further differences to our avaiation - AvMike :  volume-control not needed, light gooseneck only available

  • Referencetests performed with the following systems

        ICOM:      IC 775 DSP             IC 7300

        YAESU:     FT1000MP

        ELECRAFT:       KX3
